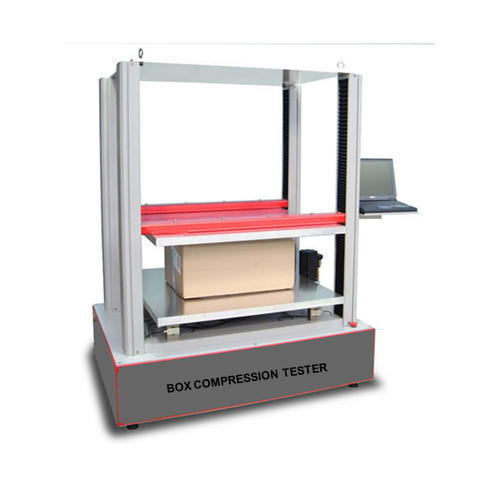

          BOX COMPRESSION TESTER

          BOX COMPRESSION TESTER
          BOX COMPRESSION TESTER
          Send Inquiry
          Product Code : RISEC16
          Brand Name : RAM INCREDIBLE SOLUTION
          Product Description

          BOX COMPRESSION TESTER

          • Capacity (optional)  0~3000kgf
          • Unit (switchable)  KG, LB, N
          • Load Resolution  1/100,000
          • Load Accuracy, ¤0.5%
          • Test Space (LxWxH) 500 —1500mm / 60x60
          • Speed of Compression  10 ± 3 mm/min
          • Operation Mode PC
          • Report Items Serial number, Peak value, Average value, Designated holding pressure value; are all memorable
          • Structure Servo motor
          • Dimension (LxWxH)  2000x2000x2030 mm
          • Power  220v/ 50Hz
          • Safety Devices  Overload protection, over voltage protection & limiting position protection device
          • Standard  TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642
          • Fail-Pass criteria  Due to any change in dimension within certain load term condition
          • Pc-  HP -Core i5
