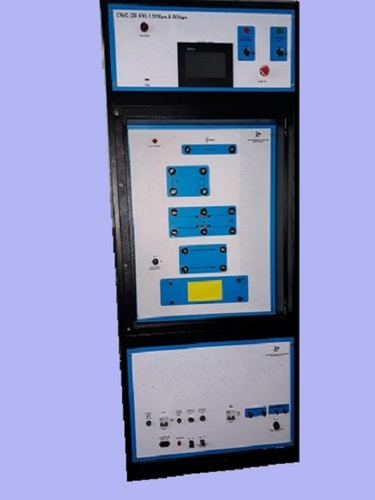

          20kv COMBINATION WAVE GENERATOR, 10/700µs

          20kv COMBINATION WAVE GENERATOR, 10/700µs
          20kv COMBINATION WAVE GENERATOR, 10/700µs
          Send Inquiry
          Product Code : RISEC52
          Brand Name : RAM INCREDIBLE SOLUTION
          Product Description
          CWG OUTPUT CAPACITY : 20kv

          POLARITY                          : POSITIVE & NEGATIVE

          REPETITION RATE            : 1 PER MINUTE OR FASTER

          OPEN CIRCUIT VOLTAGE : Tf=10µs ±20%, Td=700µs± 20%

          (SHORT CIRCUIT

           CURRENT)                          : Tf= 5µs ±20%, Td=320µs± 20%

          (OPEN CIRCUIT PEAK

           VOLTAGE ±10% AT

          GENERATOR o/p)                : 20kv

          (SHORT CIRCUIT PEAK

           CURRENT ±10% AT

          GENERATOR o/p)                : 500A

          OUTPUT IMPEDANCE        :  2Ω

          DIMENSIONS(L—W—H)        :  1200mm—800mm—2060mm

          PHASE SHIFT                      :  ASYNCHRONOUS, SYNCHRONISATION ON 0°~360°

                                                           OR SPECIFIC ANGLE
