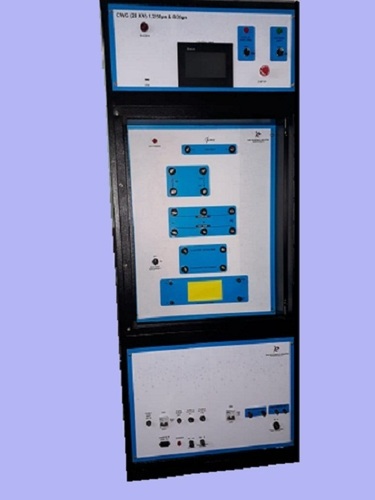

      20kv COMBINATION WAVE GENERATOR, 1.2/50‚µs

      20kv COMBINATION WAVE GENERATOR, 1.2/50‚µs
      20kv COMBINATION WAVE GENERATOR, 1.2/50‚µs
      Send Inquiry
      Product Code : RISEC51
      Brand Name : RAM INCREDIBLE SOLUTION
      Product Description
      CWG OUTPUT CAPACITY : 20kv

      POLARITY                          : POSITIVE & NEGATIVE

      REPETITION RATE            : 1 PER MINUTE OR FASTER

      OPEN CIRCUIT VOLTAGE : Tf=1.2µs ±30%, Td=50µs± 20%

      (SHORT CIRCUIT

       CURRENT)                          : Tf= 8µs ±20%, Td=20µs± 20%

      (OPEN CIRCUIT PEAK

       VOLTAGE ±10% AT

      GENERATOR o/p)                : 20kv

      (SHORT CIRCUIT PEAK

       CURRENT ±10% AT

      GENERATOR o/p)                : 10kv

      OUTPUT IMPEDANCE        :  2Ω

      DIMENSIONS(L—W—H)        :  1200mm—800mm—2060mm

      PHASE SHIFT                      :  ASYNCHRONOUS, SYNCHRONISATION ON 0°~360°

                                                       OR SPECIFIC ANGLE
